MULTILAYER FLEXITANK

Our Flexitanks are fabricated from FDA approved food grade Polyethylene and Polypropylene which are suitable for a wide range of non-hazardous liquid cargo.

DCIM100GOPRO

  • Beta Tank

    A 20’ bulk container liner made from 2 layers of 125 micron Polyethylene sewn into a woven Polypropylene outer.

  • Gamma Tank

    A 20’ bulk container liner made from 3 layers of 125 micron Polyethylene sewn into a woven Polypropylene outer.

  • Delta Tank

    A 20’ bulk container liner made from 4 layers of 125 micron Polyethylene sewn into a woven Polypropylene outer.

  • Epsilon Tank

    A 20’ bulk container liner made of 5 layers (4 layers of 125 micron Polyethylene and 1 of layer Barrier Film of 100 micron EVOH Liner) sewn into a woven Polypropylene outer.

PP WOVEN & FILM

A PP Woven is a Flexitank's outer layer which helps to support the Flexitank and stabilizes the liquid dynamics.

The Film is manufactured from food approved polymers using monomers listed as approved stated substances in SI 3i45 and additives listed approves in EU directive 93/3/EC.

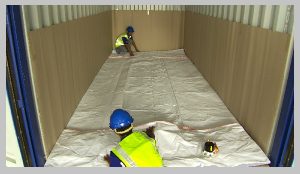

PP Woven & Film

  • Liquid Liner Film (Polyethylene Liner)

    Fabricated from FDA approved food grade 5 layer co-extruded tubular film made from a blend of resins based around polyethylene.

  • Liquid Liner Film (EVOH Liner)

    Specially coated Polyethylene Film with low oxygen transmission rate.

VALVE

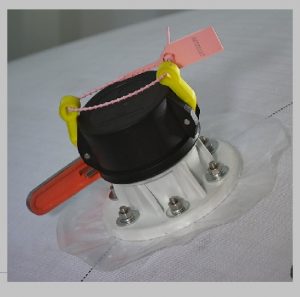

Valve

  • 3" PP (food grade) Butterfly Flange Valve With Gland

    One filling flange - 3”diameter which is attached to main body by the 360 degree impact welded seal.

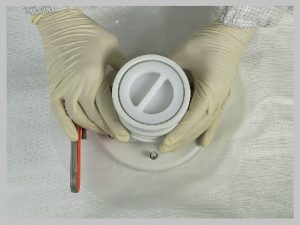

Valve-2

  • 3" PP (food grade) Butterfly Flange Compression Valve

    Fabricated from food grade Polyethylene supplied with butterfly valve, elbow-butterfly valve and Banjo valve.

BULKHEAD

A Bulkhead is a retaining wall that restrains the Flexitank from coming out of the container when it is fully loaded. We offer 3 types of bulkheads:

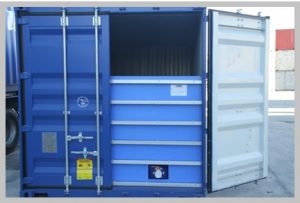

Bulkhead A

  • Bulkhead A

    Consist of 4 steel bars and is used together with top load / top discharge Flexitank.

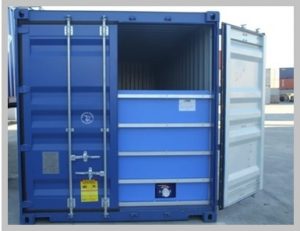

Bulkhead B

  • Bulkhead B

    Consists of 2 steel bars and is used together with top load / bottom discharge Flexitank and bottom load / bottom discharge Flexitank.

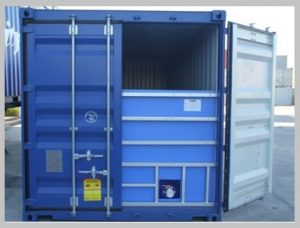

Bulkhead C

  • Bulkhead C

    Consist of 2 steel frames and can be used with any types of Flexitank.
